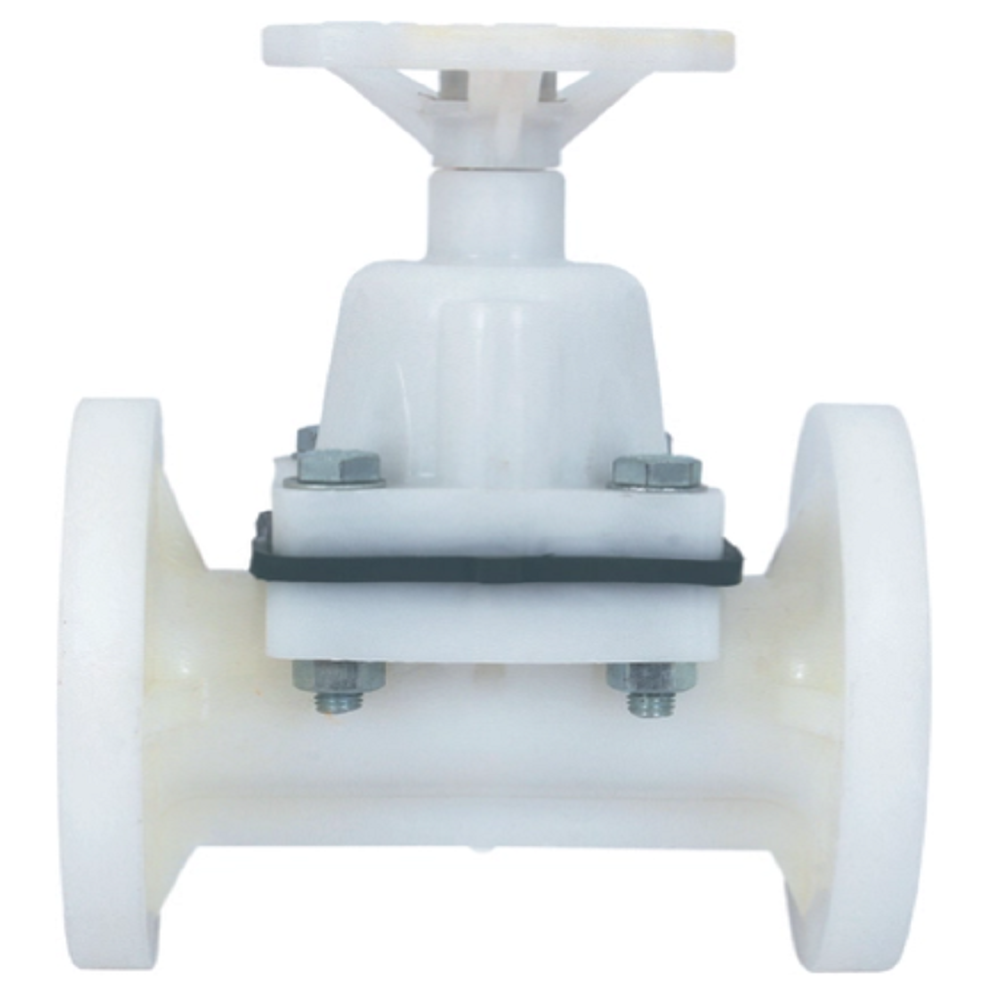

Used For : Diaphragm valves are bi-directional, on-off throttle valves. They are used to control fluid flow by regulating the area with which media can enter and exit the valve, effectively changing its speed and velocity.
Construction : Weir type design, Soft seated, Raising stem.
Design & Manufacturing STD : As per Manufacturer’s Standard
Engineering Options : S.S. 304/316 parts can be supplied Glass Length as per your request, Teflon coated Rubber, EPDM Rubber, Viton Rubber on Request.
End Connections : Flanged as per ANSI B 16.5 (150#) & as per BS 10(Table D/E/F) & DIN STD.
Available M.O.C : PP (POLYPROPYLENE), HDPE (HIGH DENSITY POLYETHYLENE), ISOTACTIC PP, PVDF (POLYVINYLIDENE FLUORIDE)
| Material | PVC (Polyvinyl Chloride) |
|---|---|
| Usage/ Application | Industrial |
| Valve Colour | White |
| Temperature | 80 Celsius (oC) |
| Product Type | Weir Type |
| Size/Diameter | 15 mm to 110 mm. |
| Country of Origin | India |
| Minimum Order Quantity | As Per Requirement |
| Delivery Time | READY EX PARTY |
| Packaging Details | Standard BOX Packing |
| Length | As Per Manufacturing standard. Millimetre (mm) |
| Brand Name | PARTH |
