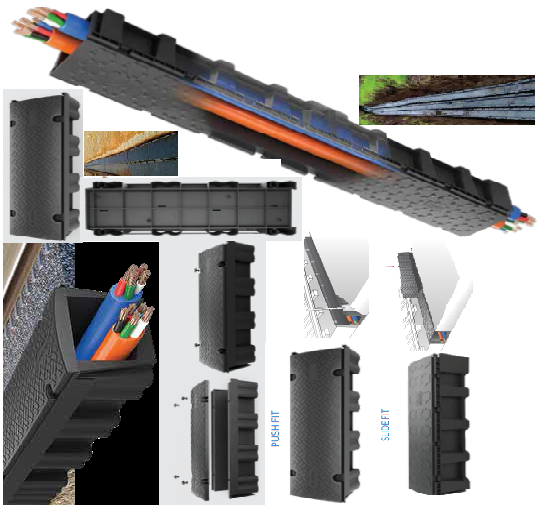

Specification : Supply of Polyolefin Injection-molded cable channel of size width (int. / ext.) 240 / 340mm, height (int. / ext.) 155mm / 230mm, length 1 meter (tolerance in dimensions +/-10mm) min weight per meter-8kg (top and bottom), fire protection class K1 in accordance with DIN 53438 Part-2, Load bearing strength (minimum) – ≥15 kN at room temperature, channel attachable to each other with male-female swallowtail connectors and having suitable detachable cover.
Advantages : Polyolefin channels are 10 times lighter than Concrete trays hence lesser transportation and handling cost, Chances of breakage during transportation and installation are lesser in Polyolefin channels compared to brittle Concrete trays , Polyolefin channels can be joined without any special techniques compared to complex installation process of Concrete trays , MultiRex Polyolefin channels come with special arrangement for water discharge where as water clogging in Concrete trays leads to vegetation , MultiRex Polyolefin channels are also available as per RDSO specifications hence superior than Concrete trays Which are largely manufactured by unorganized sector , Multirex channels and lids are available with push-fit/slide-fit and lock-key mechanism which minimizes the misalignment occurring while placing concrete channels in the trench.
